Steel Vengeance is a thrilling, adrenaline-inducing steel-on-wood roller coaster that features a 205-foot initial drop, four inversions, and 30 seconds where the riders are in free-fall. The ride—the latest attraction at Sandusky, Ohio’s Cedar Point amusement park—is listed as the tallest, fastest, and longest hyper-hybrid coaster in the world.

Matt Schmotzer, a systems engineer at Ford Motor Company and a roller coaster enthusiast, has not only ridden Steel Vengeance, he has succeeded in 3D printing a model replica of the coaster in his garage.

“Some people have model train sets and I have roller coasters. I do this as a hobby to continue innovating outside of the workplace,” Schmotzer said. “The maker movement inspired me to take anything in your mind and create it. 3D printing helps you achieve that goal.”

Schmotzer first decided to combine his deep passion for roller coasters and 3D printing when he was enrolled as a graduate student in mechanical engineering at Purdue University, where he built a 1:25 scale, 3D-printed replica of the Invertigo roller coaster at Kings Island amusement park in southern Ohio.

“I previously had made three other static roller coaster models out of balsa wood, hot glue, and plastic tubing,” he said. “This was the first project that I designed entirely in CAD to be built using additive manufacturing.”

Schmotzer designs the rides using the NoLimits roller coaster simulator.

“You can export the ride layout into x-y-z data points that can be brought back into SOLIDWORKS,” Schmotzer said. “The software helps me make the skeleton into an assembly that can then be 3D printed, laser cut, or CNC milled.”

In a real roller coaster there are cement footers that hold the support structures.

“I take the plywood sheets and cut the holes out for the footers in a machine laser,” Schmotzer said. “Then I build the support structures made from 3D-printed joints. The track which holds the rails is also 3D printed.”

Schmotzer uses different kinds of 3D printers to turn his ideas into reality.

“It comes down to resolution and build volume,” he said. “The track pieces get quite large so I use the LulzBot, as it has a large build volume. Formlabs is used for high-res parts that I need for the trains. Each machine has its purpose.” He also uses Arduino microcontrollers to control the dc motors.

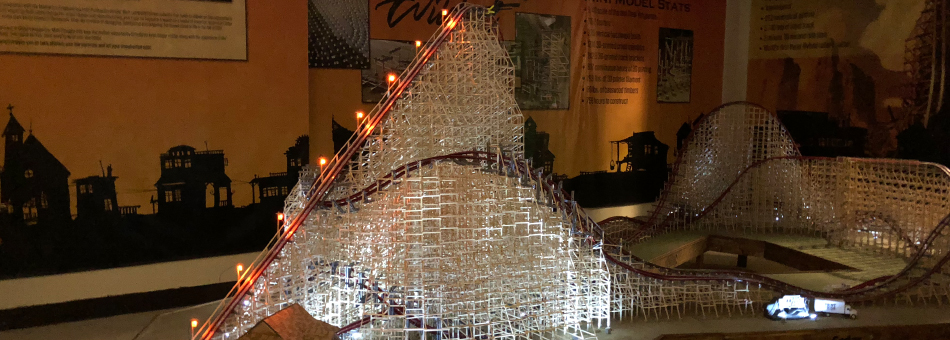

Schmotzer’s latest project is Batman: The Ride—a series of roller coasters based on the 1989 superhero film. With 86 track sections and more than 128 supports each, the part creation took about 400 hours. Once ready, the roller coaster was assembled onsite at SOLIDWORKS World 2019, and soon drew attention of the attendees.

“With Invertigo, each of the 33 track sections took 12 hours to print, so the entire track took over a month to create,” Schmotzer said. “On Batman: The Ride there are 86 sections of track, more than double that of Invertigo. So my wife, a computer scientist, combined a series a macros with an executable file to automate the track-splicing process. What used to take three weeks of manual effort on Invertigo is now just a button click on Batman: The Ride.”

So which ride will he build next? Schmotzer is working on his favorite, Cedar Point’s Millennium Force. He also wants to display his models at the Maker Faire and see if he can get more people interested: “A lot of my followers are kids who want to design roller coasters and things like these keep them excited in engineering.”
